History of CARC computing¶

Since 1994, UNM's research supercomputers have lived in the machine room of the Galles Building (the former Galles Motor Company showroom at 1601 Central Ave NE, on Route 66).³ The center that runs them has had four names:

The center's logos over the years: HPCERC and AHPCC (2000), HPC@UNM (2003) and UNM CARC (2015). Each image links to its Wayback Machine capture.

The AHPCC's own 2000 history describes the building as "an old Cadillac dealership built in the mid-1950s", and says the center opened there in 1994 with 10 students and one research scientist.¹⁶ The building was expanded between November 1998 and April 1999.¹⁶

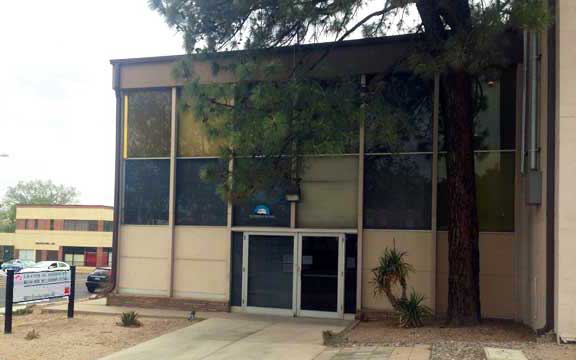

The CARC entrance at the Galles Building, from the center's website (captured 2015).

The current machine room was dedicated in 2005 as part of a renovation of the Galles Building that also created space for the ARTS Lab. CARC's history page gives its size as 1,500 sq ft; the current facilities description gives 1,200 sq ft.¹ A cooling, UPS and hot-aisle containment upgrade costing just over $250,000 (paid by CARC, the Provost and the Office of the Vice President for Research) was finished around March 2015 so that all of Ulam could run.⁴⁶

The 2015 machine-room upgrade, from the CARC website (captured Sep 2015).

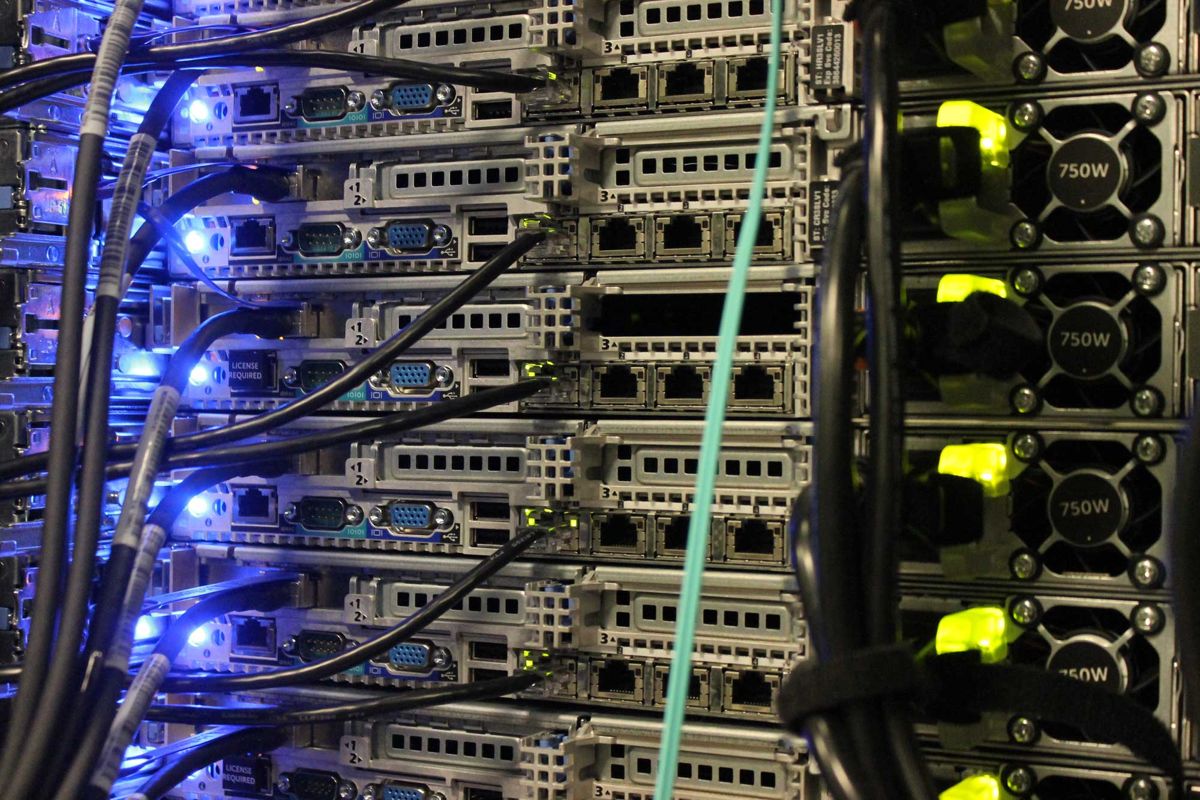

Machine-room cabling, from the CARC website (captured Sep 2015).

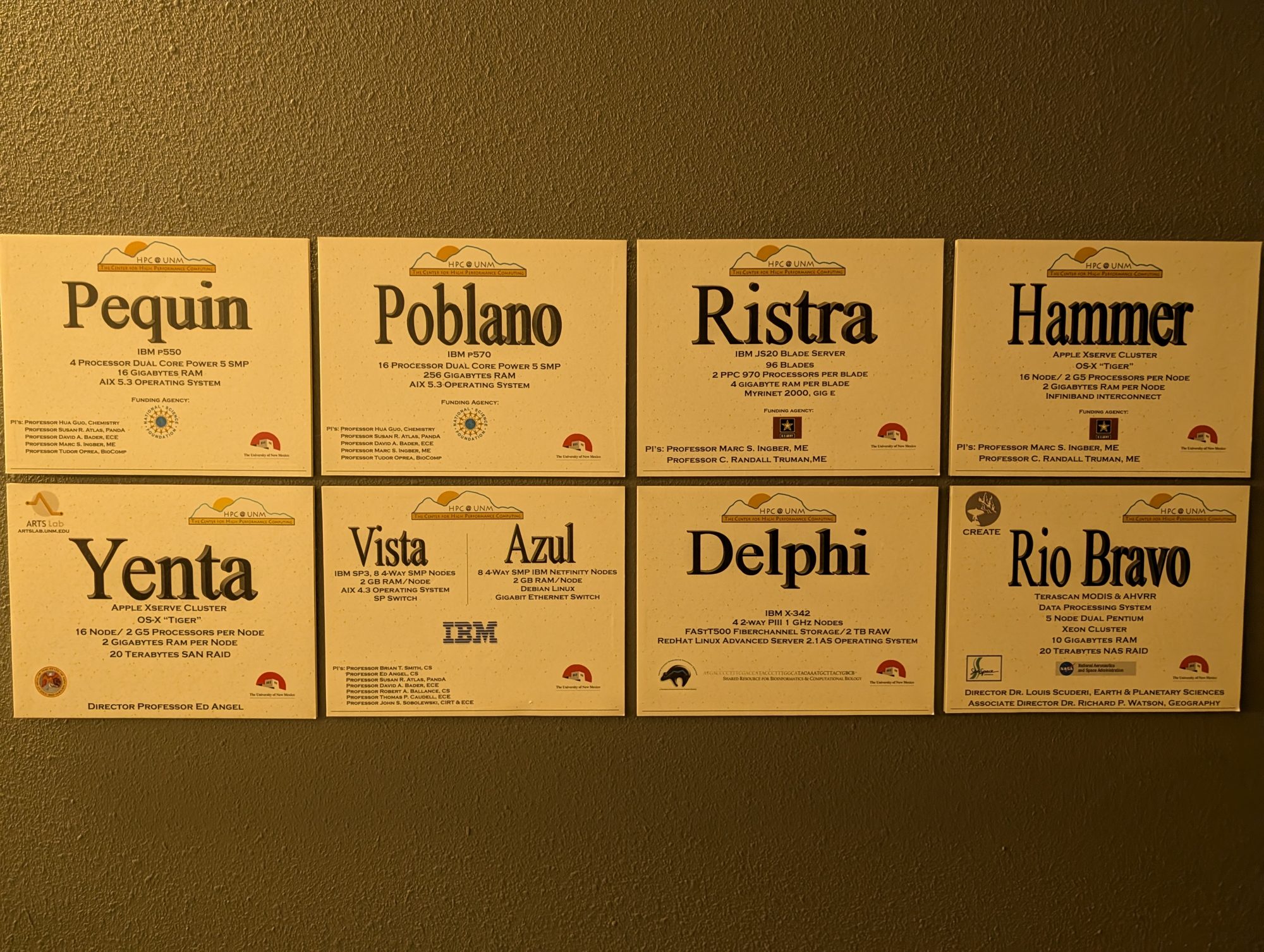

The HPC@UNM machine plaques that still hang on the Galles Building machine-room wall (photo, July 2026).

Timeline¶

Bars show the years each system was in service. Where an install or retirement year is not documented, the bar uses the estimate given in the machine tables below, and the label ends in "est.".

gantt
    title Supercomputers in the Galles Building machine room
    dateFormat YYYY
    axisFormat %Y
    section AHPCC
    IBM SP1 from MHPCC (end est.)    :1995, 1998
    IBM SP2 nodes (start est.)       :1997, 2000
    Nambe SGI Origin 2000 (end est.) :1997, 2004
    Roadrunner                       :1999, 2003
    BlackBear (start est.)           :1999, 2005
    Vista Azul                       :2000, 2008
    Los Lobos (end est.)             :2000, 2008
    section HPC@UNM
    Delphi                           :2003, 2015
    Rio Bravo / CREATE               :2004, 2021
    Pequin and Poblano (dates est.)  :2005, 2013
    Ristra (dates est.)              :2005, 2012
    Hammer (dates est.)              :2005, 2012
    Yenta (dates est.)               :2005, 2013
    Nano (end est.)                  :2007, 2017
    Pequeña                          :2008, 2017
    section CARC
    HP X9000 storage (end est.)      :2010, 2017
    Metropolis                       :2012, 2017
    Galles Beowulf                   :2013, 2019
    Ulam                             :2014, 2017
    Xena (start est.)                :2016, 2026
    Gibbs (dates est.)               :2013, 2025
    Wheeler                          :2017, 2025
    Taos (dates est.)                :2017, 2025
    Hopper                           :2022, 2026
    Easley                           :2025, 2026

Leadership¶

Directors¶

Founders of the predecessor centers: Frank Gilfeather, Brian T. Smith and John S. Sobolewski (MHPCC, 1993).¹

Associate and deputy directors¶

Program directors named on the plaques: Edward Angel (Director, ARTS Lab, for Yenta), Louis Scuderi (Director, CREATE, for Rio Bravo) and Richard P. Watson (Associate Director, CREATE).²

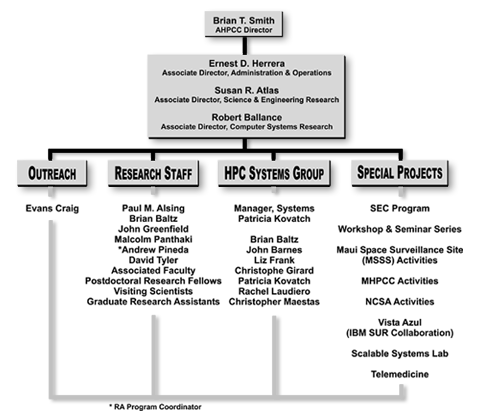

AHPCC organization chart, 2000: Director Brian T. Smith with Associate Directors Ernest Herrera, Susan Atlas and Robert Ballance, and Patricia Kovatch as systems manager.²⁰

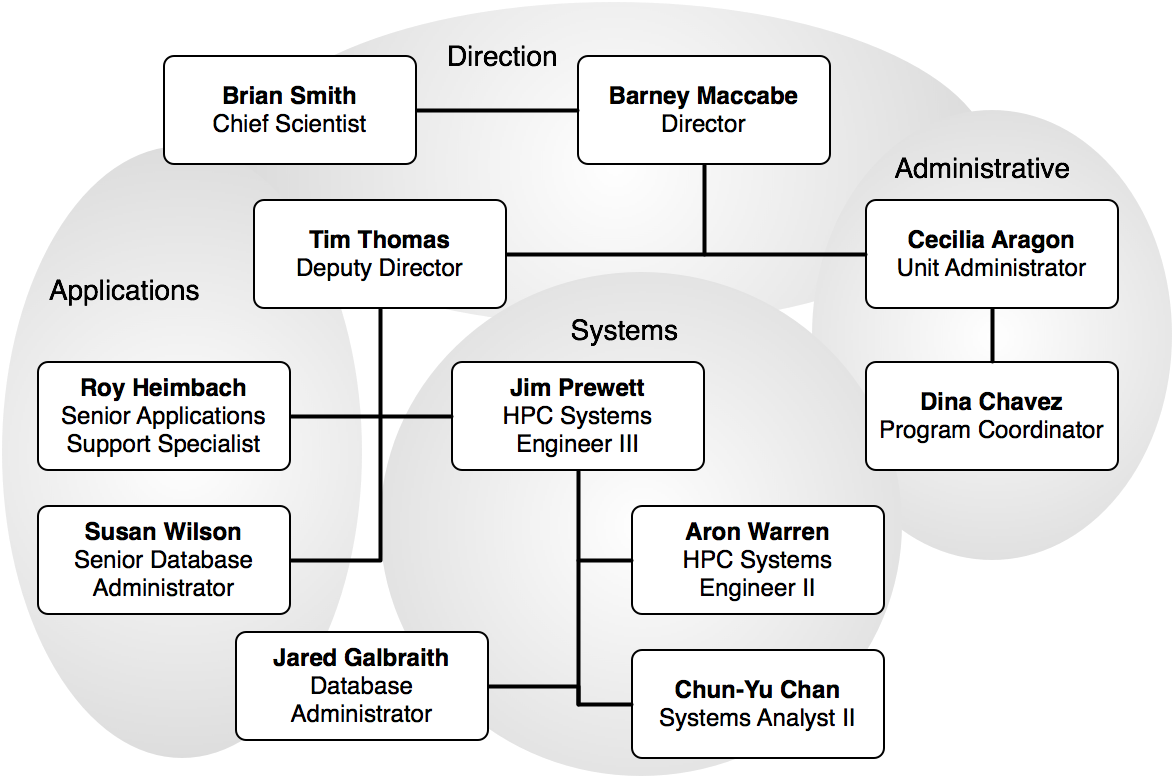

HPC@UNM organization chart, 2007: Director Barney Maccabe, Chief Scientist Brian Smith and Deputy Director Tim Thomas. It was captured in March 2007 but had not yet been updated for Tom Caudell's February 2007 appointment.²¹³⁹

Staff named in the record¶

Patricia Kovatch (Roadrunner project engineer, 1999; manager of the HPC Systems Group, 2000),³¹ John Barnes (Vista Azul systems lead engineer, c. 2000),⁷⁵ Cecilia Aragon (Administration and Operations Manager, 2004; Unit Administrator, 2006–07),⁷⁷⁷⁸ Roy Heimbach (senior applications support analyst, 2003–13), Chun-Yu Chan (network and Access Grid, 2004–13), Jared Galbraith (database administrator and developer of the AIRS reporting system, 2004–07),⁷⁷⁷⁸⁷⁹ James E. Prewett (HPC systems lead; retired c. 2026),⁶¹ Susan Wilson (senior database administrator, 2004–15) and Ben Archuleta (CARC systems, 2014),⁴⁵⁸¹ Ryan Johnson (user support, 2015–16),⁸² Hussein Al-Azzawi (network and storage specialist, then HPC IT Manager, who led the Easley acquisition; left June 2026).⁶²

PIs who contributed hardware¶

The other condo PIs on Taos (2020) and Hopper (2021–22) are not named in any public record found, and neither are the units behind the Delphi "Shared Resource for Bioinformatics and Computational Biology".⁵⁰⁵¹

The machines¶

Peak performance is theoretical double-precision peak (Rpeak) unless noted. "(est.)" peaks are computed as cores × clock × floating-point operations per cycle, using the usual clock speeds for that processor; the clocks are not on record. "2003+" means the machine was still listed in the April 2003 HPCERC systems inventory.

Summary¶

Capacity over time¶

The chart adds up every machine in service at any time during each year. It counts CPU cores only (GPUs add to peak performance but not to cores), and storage means disk attached to the machines plus the center's shared file systems where a source gives a size.

Totals for all machines in service at any time in each year, on log scales. Hover a year for its value.

These totals lean on estimates, so read them as orders of magnitude.

• Peak performance is shown twice: CPUs alone (solid line) and CPUs plus GPUs (dashed line, from 2016). GPU figures are double-precision (FP64) peaks from vendor specifications: Xena's 32 Tesla K40M GPUs (~46 TFLOPS), Hopper's 37 A100s (~0.36 PFLOPS) and Easley's 8 H100s and 36 L40S (~0.32 PFLOPS). Xena's listed 18 TFLOPS is treated as its CPU peak; the source does not say whether it includes the GPUs. Hopper's CPU peak is ~0.2 PFLOPS and Easley's ~0.27 PFLOPS. Tensor-core and lower-precision (AI) peaks would be many times higher and are not counted.
• Memory is from the sources where given (Roadrunner, Los Lobos, Vista Azul, Poblano, Ristra, Gibbs, Xena, Wheeler, Easley). For Nano, Pequeña, Metropolis, Galles, Ulam, Taos and Hopper it is estimated from typical configurations for those servers, and it is a rough guess for the 1990s machines.
• Storage has gaps. No sizes were found for the 1990s machines or for shared storage between 2017 and 2021. The 2025–2026 figure is the shared storage on the facilities page (720 TB GPFS, 2 PB BeeGFS and 2.4 PB NetApp), and its start year is assumed. Tape is not counted.
• Years in service follow the dated sources in the machine notes (first and last year a machine is listed or reported), so a year in which one machine replaced another counts both. Where a date is unknown it is assumed: the SP1 to 1997, Azul to 2006, the Truchas and RCDE workstations from 2001 to 2007, Poblano and Yenta to 2013, the HP X9000 to 2016, and Taos from 2018. Gibbs, Taos and Wheeler count through 2025.

The per-machine figures behind the chart are in scripts/build_capacity_timeline.py.

AHPCC era (1994–2003)¶

IBM SP1 and SP2 (1995–1998). The first supercomputer in the Galles Building was the original IBM SP1 from MHPCC, installed late in 1995.¹⁶ A 1998 HPCERC page describes the AHPCC lab as including "a 32-node IBM SP1".¹⁷ In mid-1997 AHPCC prepared for 128 SP2 nodes from MHPCC, which matches the "128-node IBM SP system" in a January 1998 release, and it also received an 8-node SGI Origin SMP.¹⁶⁵ The SP1 is missing from AHPCC's Nov 1998 systems guide, which lists the SP2 with 96 of its 128 nodes configured (66 MHz POWER2, 64 MB per node).⁶⁴ The SP2 was retired on Mar 1, 2000.⁶⁶ The SGI Origin 2000 was the machine called Nambe (8 × 195 MHz R10000), listed later as an Onyx2 visualization engine.⁶⁴⁶⁷ Nambe is last listed in Nov 2003.⁸⁴ Peak and cost: unknown.

Banner of the Alliance/UNM Roadrunner Linux supercluster site, 2000.

Roadrunner (1999). An Alta Technology "AltaCluster" (Alta Tech of Sandy, Utah, later Linux Networx): 64 nodes of dual 450 MHz Pentium II, 512 MB ECC SDRAM and a 6.4 GB disk per node, a Myrinet data network and a Fast Ethernet control network. Peak was 63 GFLOPS and nodes cost under $6,500 each.²⁹ Nodes arrived Mar 17 and Mar 31, 1999; users got access Jun 1 and national allocations started Jul 1. NCSA allocated $400,000 for Phase 2.⁶ It ran Linux, PBS and Globus,³⁰ and was the first Linux cluster available through NSF national allocation.¹ AHPCC's 2000 history dates the Alliance funding to January 1999 and the unveiling to April 1999.¹⁶ A 2000 news story puts the system's price at $400,000.⁷² It is last listed in Aug 2003 and is gone from the machine list by Nov 2003.¹⁵⁸³⁸⁴

Roadrunner's specifications as the Alliance site showed them in 2000: 64 dual SMP nodes, 128 Pentium II 450 MHz processors, Fast Ethernet and Myrinet, Red Hat Linux 6.1.

BlackBear. A 16-node VA Linux cluster of dual 550 MHz Pentium III with 512 MB per node, Myrinet and Ethernet. AHPCC's hardware page says it was "named in honor of Smokey the Bear", the New Mexico native who became the fire-prevention mascot; the black bear is also the state animal.⁶²² The April 2003 HPCERC inventory lists it as a VA Linux 501 cluster with a Pentium II 450 MHz head node and 16 dual Pentium III 550 MHz compute nodes.¹⁵ Peak (est.): about 18 GFLOPS. Install date and funding: unknown.

Vista Azul (2000). Announced Dec 13, 1999 as an IBM Shared University Research award: an AIX RS/6000 SP (Vista) coupled to a Linux Netfinity cluster (Azul), with parallel storage, a prototype IBM Research Scalable Graphics Engine and links to Roadrunner.⁹ The plaque gives Vista as 8 four-way SMP nodes with 2 GB each, AIX 4.3 and an SP Switch, and Azul as 8 four-way Netfinity nodes with 2 GB each, Debian Linux and Gigabit Ethernet.² The April 2003 HPCERC inventory adds that Vista's nodes used 332 MHz PowerPC processors and ran the LSF scheduler (access for "HPCERC & IBM"), and that Azul was IBM Netfinity 5500 servers with 550 MHz Xeon compute processors and a 700 MHz Xeon head node with 4 GB.¹⁵ The proposal (Dec 1, 1999) names six PIs: Susan Atlas, David Bader, Robert Ballance, Thomas Caudell, Brian Smith and John Sobolewski; CARC's history names Smith as PI.⁷⁴¹ Azul's nodes arrived Dec 16, 1999 and were running by Jan 5, 2000.⁷³ The 2001 "32-node IBM SP3" on AHPCC's About page is Vista (8 nodes × 4 processors). Azul was still listed in Dec 2006 as the lab machine for UNM's parallel-programming classes, and Vista's compute nodes went down on Jul 2, 2008 and stayed down.⁸⁸⁹⁰ Peak (est.): about 21 GFLOPS for Vista (32 × 332 MHz × 2 flops per cycle) plus about 18 GFLOPS for Azul (32 × 550 MHz). SUR dollar value: unknown.

Los Lobos (2000). 256 IBM Netfinity 4500R servers with dual 733 MHz Pentium III (512 processors), 1 GB per node, Myrinet, the Maui scheduler, 1 TB of SSA RAID and 2 TB of tape.¹⁰¹¹

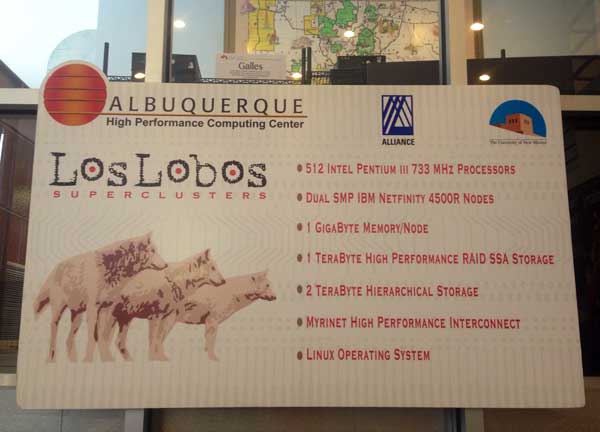

The Los Lobos sign, from the center's website (captured 2015).

It was IBM's first Linux production system and the top open Linux cluster on the TOP500.¹ TOP500 lists Rpeak 375.3 GFLOPS and Rmax 237 GFLOPS, ranked #80 (Nov 2000), #101, #125, #228 and #297 (Nov 2002).²⁸ A Reuters projection of "No. 24" was based on peak, not a listed rank.¹⁴ Funded and supported by NSF through the National Computational Science Alliance.¹² The money came through NCSA's Alliance cooperative agreement (NSF ACI-9619019), which does not itemize subawards; no UNM award record exists.¹⁰¹ Alliance allocations started Sep 1, 2000.⁶⁸ It was still running in Nov 2005 and Aug 2007, and is gone from the systems table by Aug 2008.⁸⁷⁸⁹²⁴ Cost: unknown. The April 2003 HPCERC inventory still lists it: 4 head and 256 compute nodes, 730 MHz Pentium III, 1 GB per node, Myrinet, 2 TB NFS and PBS Pro, open to "HPCERC & Alliance" users.¹⁵

Other AHPCC systems. BlackBear was in service by Feb 2000, when users of the retiring SP2 were sent to it; it is still on the May 2004 machine list, and by Nov 2005 its rack held only infrastructure servers.⁶⁶⁸⁵⁸⁷ In 2001 AHPCC counted four Linux superclusters: Los Lobos, Roadrunner, BlackBear and Azul.⁶⁵ The 1998–2000 systems pages also list SGI and IBM workstations named for New Mexico places: Cochiti (SGI Onyx, 4 × R4400), Belen (SGI Octane) and the RS/6000s Isleta, Grants, Quemado, Acoma and Gallup.⁶⁴⁶⁵ The April 2003 inventory lists three smaller machines:¹⁵

• Truchas: 12 home-built Linux workstations with dual 650 MHz Pentium III and 1 GB each, running Condor. It was an upgrade of an older AHPCC cluster called Turing (12 Pentium MMX 233 MHz nodes in 1998).²³⁶⁴ The Truchas boxes were still in use in 2007.⁸⁹
• RCDE: 64 VA Linux 501 workstations (single 330 MHz Pentium II, 128 MB) running Linux and Windows 2000.
• Nambe: an SGI Onyx2 visualization engine with 8 MIPS R10000 195 MHz processors and 1 GB, running IRIX.

The inventory's description column ("used for UNM classes", "joint project with the UNM Center for Particle Physics", "staff desktops and Condor") does not line up cleanly with the machine columns, so which use belongs to which machine is not certain. Install and retirement dates: unknown.

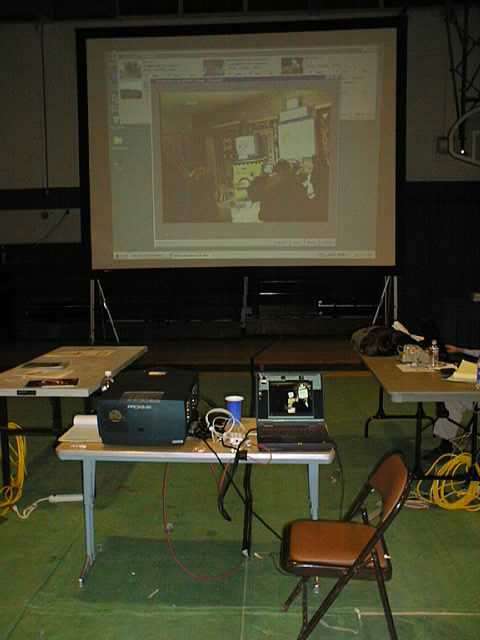

Access Grid (1999). UNM installed an Access Grid node and hosted the first-ever Access Grid session.¹ Hardware and cost: unknown.

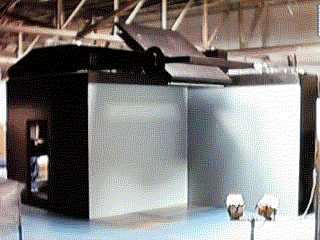

Left: the RAVE visualization system pictured on the AHPCC site in 2000; it belonged to Los Alamos, was stored in AHPCC's high bay, and went back to Los Alamos on Jul 18, 2000.⁶⁹ Right: an Access Grid node at Diné College, pictured on the AHPCC site in 2002.

Conflicting dates in the sources. The archived pages do not always agree. Roadrunner's arrival is given as January 1999 (when funded) or April 1999 (when unveiled); Los Lobos's processors as 733 MHz or 730 MHz, and its start as summer or August 2000; and HPCERC's founding as 1994 or 1995.¹⁶¹⁵¹ This page uses the earliest dated primary source for each.

HPC@UNM era (2003–2009)¶

Delphi (2003). An IBM xSeries 342 parallel Oracle server: four 2-way 1 GHz Pentium III nodes, FAStT500 Fibre Channel storage with 2 TB raw, and Red Hat Linux Advanced Server 2.1, for the Shared Resource for Bioinformatics and Computational Biology.² It hosted the UNM Cancer Center's GenomeDW genomics data warehouse.¹ In Oct 2003 the database page listed Delphi1–3 as an Oracle RAC (2 × 1 GHz, 2 GB each, 3 TB of Fibre Channel disk) and Delphi4 as its application server, alongside an Oracle server called Oro.⁸⁶ The UNM Cancer Center's Delphi/Apollo clusters are still on CARC's systems page in Apr 2015 but only Apollo is by Sep 2016.²⁶²⁷ The Keck Foundation cancer-genomics grant of 2000 is the earliest record of the center's genomics work.⁷¹ Peak (est.): about 8 GFLOPS. Funding and cost: unknown.

Rio Bravo (CREATE, 2004). A TeraScan MODIS and AVHRR processing system on a 5-node dual-Xeon cluster with 10 GB RAM and 20 TB NAS RAID, for the Center for Rapid Environmental Assessment and Terrain Evaluation (CREATE), with EDAC.² NASA awarded $1.78M in Sep 2003, mostly for the satellite receiving dish, with operations expected by April 2004; another $1.2M was being sought.³³ CREATE ran at CARC for 17 years and ended in 2021; NASA's LANCE now provides a similar service.¹ Peak (est.): about 50 GFLOPS. When the processing cluster itself was replaced is unknown. CARC's 2015 systems page also lists two CREATE machines, Fluvial and Ubik, running TeraScan for Louis Scuderi's group.²⁶

Pequin and Poblano (c. 2005). NSF MRI award DBI-0420513, "Acquisition of a High Performance Shared-Memory Computer for Computational Science and Engineering at the University of New Mexico": $350,378, awarded Aug 24, 2004 for Sep 2004–Aug 2007. PI Hua Guo; co-PIs Marc Ingber, Susan Atlas, David Bader and Tudor Oprea, the same five PIs named on both plaques.³⁵³⁶ Pequin was an IBM p550, a 4-processor dual-core POWER5 SMP with 16 GB RAM, and Poblano an IBM p570, a 16-processor dual-core POWER5 SMP with 256 GB RAM, both running AIX 5.3.² Only the plaques link these two machines to the award. The 2008 HPC@UNM systems table lists Pequin with 4 POWER5 processors at 1.5 GHz and Poblano with 16 at 1.9 GHz and 256 GB.²⁴ Both were moved into the new machine room in Nov 2005 and were still up in Jun 2010; Pequin is marked decommissioned in Apr 2013, while Poblano is still up.⁸⁷⁹⁰⁹² The 2013 systems table gives their peaks as 12 GFLOPS (Pequin) and 61 GFLOPS (Poblano).⁹³ The name Poblano was later reused for a 64-core Silicon Mechanics AMD Opteron 6272 server (0.179 TFLOPS) listed in 2015.²⁶

Ristra (c. 2005). An IBM BladeCenter JS20 with 96 blades, each with two PowerPC 970 processors and 4 GB RAM, over Myrinet 2000 and Gigabit Ethernet. Funded by the US Army; PIs Marc Ingber and C. Randall Truman (Mechanical Engineering).² The 2008 systems table lists one head node and 95 compute blades with 1.6 GHz PowerPC 970 processors.²⁴ Peak (est.): about 1.2 TFLOPS (192 processors × 1.6 GHz × 4 flops per cycle), which the 2013 systems table confirms as 1,200 GFLOPS; likely UNM's first teraflop-class machine.⁹³ Tim Thomas "completed negotiations for the next large MPI cluster" in 2004, which may be Ristra (inferred).³⁴ It was first housed outside the Galles Building and moved into the new machine room on Nov 9, 2005; it kept running through Jun 2010 and is marked decommissioned in Apr 2013.⁸⁷⁹¹⁹² Army award number and cost: unknown.

Hammer (c. 2005). An Apple Xserve G5 cluster of 16 dual-G5 nodes with 2 GB per node, InfiniBand and Mac OS X 10.4 "Tiger". Funded by the US Army; PIs Ingber and Truman.² HPC@UNM's 2010 description says it was bought "on the same grant as Ristra" and that "the primary PI is Marc Ingber".²⁵ The 2008 systems table lists 2 GHz G5 processors.²⁴ Tiger shipped in April 2005, so it was installed no earlier than then (inferred), and like Ristra it was outside the Galles Building until Nov 2005.⁸⁷ Peak: 256 GFLOPS (2013 systems table).⁹³ It was up in Jun 2010 and is marked decommissioned in Apr 2013.⁹⁰⁹² Cost: unknown.

Yenta (c. 2006). An Apple Xserve G5 cluster of 16 dual-G5 nodes with 2 GB per node and a 20 TB SAN RAID, running Mac OS X Tiger, for the ARTS Lab (Director Edward Angel).² The ARTS Lab opened in Dec 2005 with about $2.5–3M from the state's Media Industries Strategic Project.³⁷³⁸ Yenta was already running in Nov 2005, when it was moved from the Roadrunner room into the new machine room, and it is still listed as up in Apr 2013.⁸⁷⁹² Peak (est.): 256–294 GFLOPS. Cost: unknown.

Nano (by 2008). A Dell PowerEdge 1950 cluster with one head node and 36 compute nodes of Xeon 5140 (2.33 GHz dual-core) and Myrinet.²⁴ The 2015 systems page lists 35 nodes, 140 cores and 1.288 TFLOPS peak.²⁶ It is first named in an Aug 2007 maintenance notice and is still listed in Sep 2016.⁸⁹²⁷ Funding, cost and retirement: unknown.

Pequeña (by 2008). An SGI Altix ICE with one head node and 22 compute nodes of quad-core Xeon X5355/X5365 and InfiniBand.²⁴ It was also the gateway to Encanto, the state's NMCAC supercomputer.⁹¹ In 2015 it had 176 cores and 2.1 TFLOPS peak.²⁶ Replaced by Wheeler Phase 1 in 2017.⁴⁸ Funding and cost: unknown.

CARC era (2009–today)¶

HP X9000 storage (2010). 281 TB (RAID 5 usable), bought by the UNM Research Storage Consortium (four NSF projects plus University Libraries). It was then the most densely populated HP storage system in the world.¹⁴²

Metropolis (2012–2017). A repurposed LANL supercomputer donated by the New Mexico Consortium (NMC) under the NSF PRObE project (NMC award CNS-1042537, PI Gary Grider; CARC's Timothy Thomas was a co-PI).¹⁴³¹⁰⁰ The 2015 systems page lists it as a Linux Networx Evolocity cluster of 70 nodes with AMD Opteron 252 processors (140 cores, 0.728 TFLOPS).²⁶ Replaced by Wheeler Phase 1 in 2017.⁴⁸

Other CARC-era systems. CARC's 2015–2016 systems pages also list research-group and service machines: m3 (an ATLAS / Open Science Grid gateway), Rio Rancho (16 nodes, from 2006), Anodyne, Synergy, Zeno, Deepthought (an OpenStack/Ceph cluster), the LWA data archive and the ARTS Lab's SkyScan dome cluster.²⁶²⁷⁹² CARC said in 2013 that it had "about 5 Tflops/sec (peak) of computing power and just under 100 TB of storage".⁹³

Galles (2013–2019). A 200-node "green" Beowulf cluster with a Hadoop subsystem, built from more than 200 used Dell desktops collected across campus with UNM IT and University Libraries. It was retired after the late-May 2019 downtime because it had become hard to maintain.¹⁴⁹ The 2015 systems page lists 200 Dell OptiPlex nodes, 400 cores and 2.2 TFLOPS.²⁶

Ulam (2014–2017). 120 AMD nodes (960 cores) with InfiniBand in 12–13 racks, donated by NMC. Shipments arrived Dec 2013 and Jan 16, 2014, and the first two racks (144 cores) came up in early 2014.⁴⁴ CARC's aggregate reached 2,200 cores and 15 TFLOPS peak.¹ The 2015 systems page lists it as IBM System x3755 nodes with AMD 8214 processors and 4.2 TFLOPS peak.²⁶ The rest of Ulam waited on the 2015 machine-room upgrade (just over $250K).⁴⁶ Replaced by Wheeler Phase 2 in Fall 2017.⁴⁸

Gibbs. 24 Dell PowerEdge R620 nodes with Xeon E5-2670 2.6 GHz (384 cores), QDR InfiniBand and Scientific Linux; 3.996 TFLOPS peak.⁵⁶ It is first listed on the 2015 systems page, with the same 3.996 TFLOPS.²⁶ The machine-state page already shows it up, with 26 nodes, in Apr 2013.⁹² Install date and funding: unknown. Retired by 2026.

Xena (c. 2014–2026). NSF MRI ACI-1040530, "MRI: Acquisition of a GPU-Accelerated Parallel Supercomputer": $435,077 for Sep 2010–Aug 2015. PI Susan Atlas; co-PIs Hua Guo, Timothy Thomas and Lydia Tapia; former co-PIs Pradeep Sen and Jamesina Simpson. The award was meant to raise CARC's peak from 5 to 41 TFLOPS.⁴¹ As built: 32 Dell PowerEdge R730/R930 nodes (576 cores) with Xeon E5-2640 and E7-4809, 24 single-K40M and 4 dual-K40M GPU nodes, two 1 TB and two 3 TB big-memory nodes, FDR InfiniBand and 18 TFLOPS peak.⁵⁶ In 2011 CARC planned it as a "Fermi Tesla GPU supercomputer" for Spring 2011.⁹⁴ In Jul 2014 and again in Sep 2015 CARC's home page said it "will come online this summer", and the Sep 2015 project page still describes it in the future tense.⁹⁵⁹⁶ It is first listed as a production system in Sep 2016, so it entered service between late 2015 and Sep 2016.²⁷ Retired in 2026. Before Xena, CARC's only accelerator system was Bethe, a Xeon Phi and NVIDIA GTX Titan machine for astrophysics and nanoscience code development, listed from Jul 2014.⁹⁵²⁶

A Xena postcard from the center's website (captured July 2011), when Xena was still planned as a Fermi-based GPU system.

GridJam at the SC12 conference (2012), from the CARC website.

A ribbon cutting at CARC, from the center's website (captured 2015; the event and date are not captioned there).

Wheeler (2017–c. 2025). Donated by LANL through NMC and PRObE, announced Mar 16, 2017 as more than 500 nodes of dual quad-core Xeon 5550 (45–50 TFLOPS), "nine times" the four machines it replaced.⁴⁷ Named for Wheeler Peak; Phase 1 (144 nodes) replaced Metropolis and Pequeña and Phase 2 (Fall 2017) replaced Ulam.⁴⁸ As deployed: 304 diskless SGI Altix XE nodes (2,432 cores), QDR InfiniBand, 25 TFLOPS peak.⁵⁶ Replaced by Easley.⁵⁴

Taos (condo). 9 Dell PowerEdge R630 nodes with Xeon E5-2698 v4 (180 cores) and FDR InfiniBand.⁵⁶ In Oct 2020 "CARC and several UNM PIs began acquiring new hardware to expand the Taos compute cluster."⁵⁰ Peak (est.): about 6 TFLOPS. Dates and PIs: unknown.

Hopper (2022–present). CARC's first large condo cluster. The base system (14 nodes of 32 cores and 700 TB of storage) was ordered from Dell in late 2021, its cost split half PIs and half OVPR.⁵¹ It launched with 53 nodes, about 1,760 cores and 8.2 TB RAM; OVPR funded the free nodes and PIs such as Melanie Moses bought priority nodes.⁵³ Today: Dell PowerEdge R640/R740 with Xeon Gold 6226R/6242, 61 nodes, 2,176 cores, 37 NVIDIA A100 GPUs and HDR InfiniBand.⁵⁷ Peak (est.): about 0.2 PFLOPS CPU plus about 0.36 PFLOPS FP64 from the A100s. Cost: unknown.

Easley (2025–present). Named for NASA mathematician and programmer Annie Easley. A Dell CPU/GPU cluster with NVIDIA networking and IBM storage that replaced Wheeler with "7–10×" the performance in a fifth of the racks.⁵⁴ It has 65 nodes, 4,160 cores and 23.3 TB RAM, with 36 NVIDIA L40S and 8 NVIDIA H100 GPUs, an NDR 800 Gbps InfiniBand core, and 720 TB of all-flash IBM Storage Scale.⁵⁷ CARC described it as a purchase of "next-generation computing systems"; no external grant was found.⁵⁵ Peak (est.): about 0.27 PFLOPS CPU (Xeon Gold 6438Y+) plus about 0.27 PFLOPS FP64 from the H100s (twice that with FP64 tensor cores) and about 0.05 PFLOPS from the L40S. Cost: unknown.

Next system (2026). NSF MRI 2511915, "Equipment: MRI: Track 1 Acquisition of a High-Performance GPU Compute Cluster for Quantum- and AI-driven Chemistry and Materials Research": $1,399,999 starting Mar 15, 2026. PI Susan Atlas; co-PIs Hua Guo, Ivan Deutsch, Patrick Bridges and Yi He.⁵⁸ Name and specs: not yet published.

Open questions¶

These gaps need someone with first-hand knowledge. The 1997–2005 snapshots of arc.unm.edu in the Internet Archive have not been checked yet and may help with the earliest machines.

• Exact retirement dates for the SP1, Nambe, BlackBear, Los Lobos, Azul, Poblano, Yenta, Nano and Delphi. The archive narrows each to a range (see the machine notes) but no decommission notice was found.
• The dates Marc Ingber directed AHPCC before Brian Smith, and the dates of Smith's own term. The only source for Ingber's earlier term is one undated page.
• The Army award numbers and costs for Ristra and Hammer, and Yenta's cost. No Army award record was found.
• The exact month Xena entered production (between late 2015 and Sep 2016), and when Nano, Pequeña and Gibbs were installed.
• The name "Rio Bravo" appears only on the plaque; the center's own pages call the CREATE cluster "riobravo" or "SeaSpace cluster".
• The actual decommission dates of Wheeler, Taos, Gibbs and Xena.
• Purchase costs for Hopper, Easley and the BeeGFS, IBM and NetApp storage.
• Condo PIs on Taos and Hopper beyond those named here.
• Term end dates for the associate and deputy directors.
